Key features & benefits

Optimised design to maximise stiffness-to-weight ratio
ABS compatible, high efficiency forged master cylinders with push-in fittings

A range of bias adjustors and release lever

Modular throttle and clutch assemblies

Adjustable brake pedal positions

Adjustable brake pedal angle

Adjustable throttle pedal loads

Inboard and outboard throttle sensor mounting

Specification

192mm adjustment in 12mm increments

7kg 3 pedal box, excluding master cylinders

4.8:1 pedal ratio

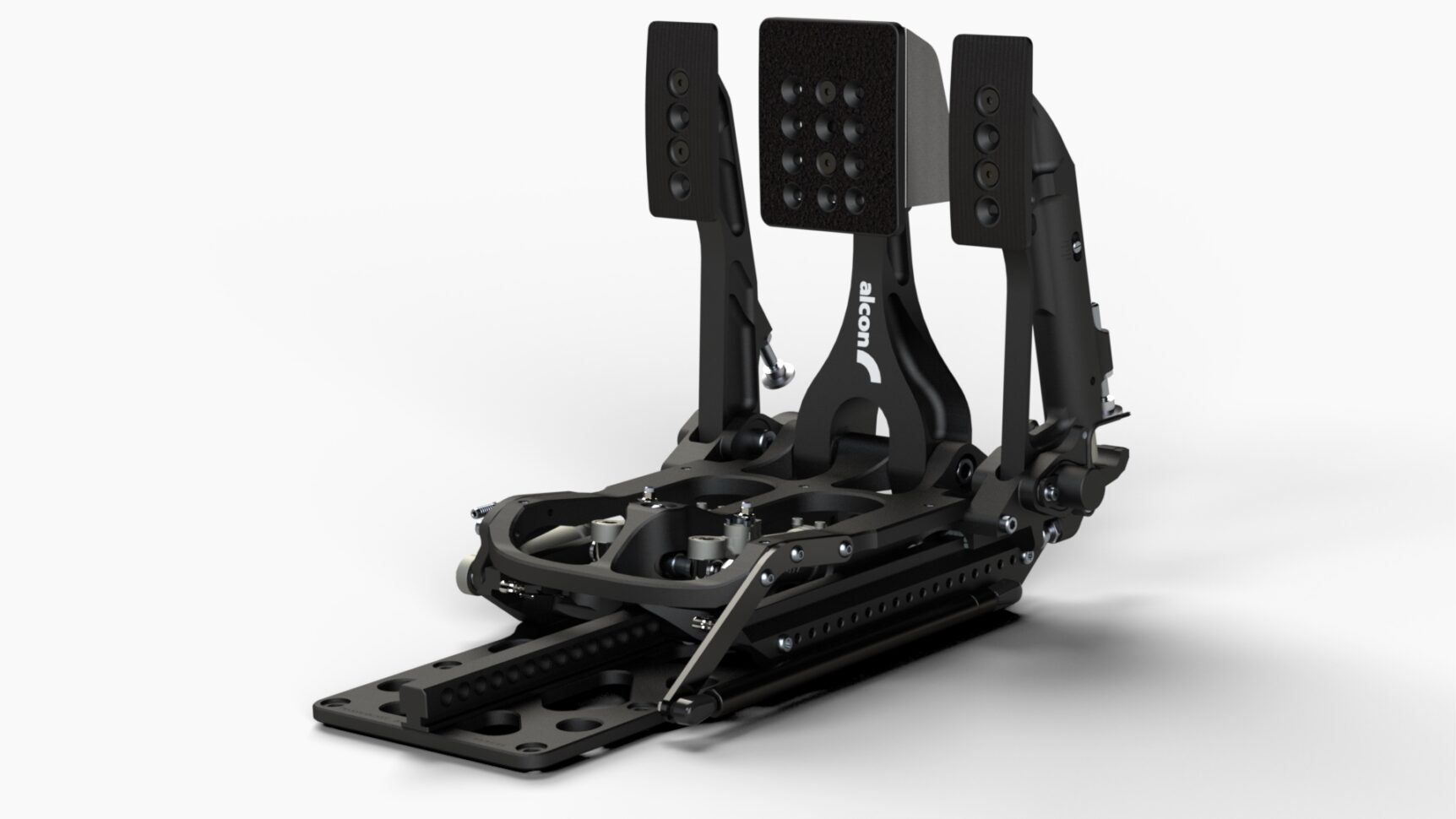

Available in three configurations: 1 pedal (brake), 2 pedals (brake / clutch or brake / throttle) or 3 pedals (throttle / brake / clutch), this modular pedal box is mounted on two linear bearing rails using high performance polymers as a sliding surface, providing smooth adjustment and a maintenance free mechanism.

Using the finest materials and the latest manufacturing processes, all Alcon products are designed, manufactured and rigorously tested in-house in Tamworth, UK.
